Fixed stretcher 1515 PROOF

Fixed stretcher with rigid cover

Fixed stretcher 1515 PROOF

Fixed stretcher with rigid cover

Description

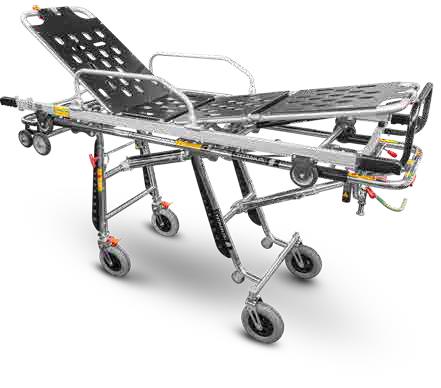

Fixed stretcher built with aluminium with Back rest and lying part made with reinforced thermoplastic material strong and easy to clean. Trendelenburg and Fowler positions. It can be used on our automatic loading trolley (TITANUS) or as hand stretcher.


Available in the version with anti-vibration (no Trendelenburg and no Fowler)

The vibration-absorbing element of the stretcher is made up of six natural rubber anti-vibration mounts which contribute to the reduction of any stress on the stretcher both when used on the trolley and especially during transport by ambulance.







  • 4 extractable adjustable handles
  • 4 wheels diam. 100mm
  • adjustable backrest 75 degrees
  • complete with 2 belts (art. 608-A/MEB or 608-N/MEB), n. 3 belts (art. 605C), n.1 belt (art. 612/AN-2/MEB or 612/N-2/MEB) and 1 mattress (art. 7014)
  • side protections completely overturnable







Device certified according to the
European harmonized standards
UNI EN 1865 - UNI EN 1789

Size Adults
Usage Transport
Lying surface With Trendelenburg and Fowler
Height (cm) 16
Width (cm) 55
Length (cm) 196
Lenght with extended handles (cm) 233
Weight (kg) 20,8
Loading capacity (kg) 170
Wheel type 4 Small Fixed Wheels
10G Certification
Material Anodized aluminium
HDPE (High-density polyethylene)
EN 1789 - EN 1865 Master & 1515 certification
