Evox Proof 7112I

“EVOX” certified self-loading stretcher convertible into chair complete with mattress

Art. 7112I

Evox Proof 7112I

“EVOX” certified self-loading stretcher convertible into chair complete with mattress

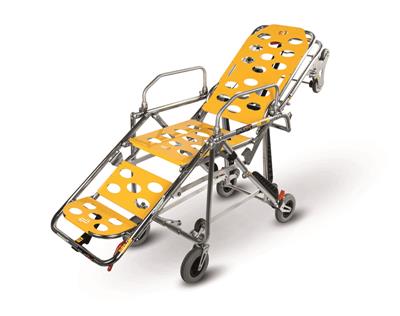

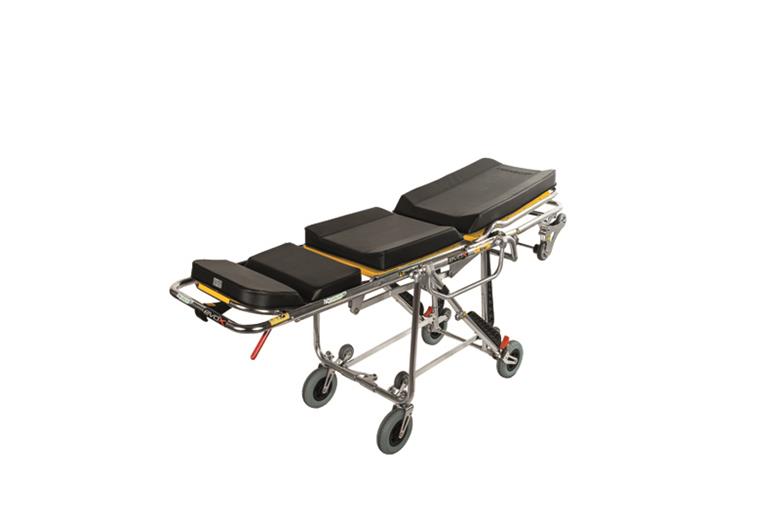

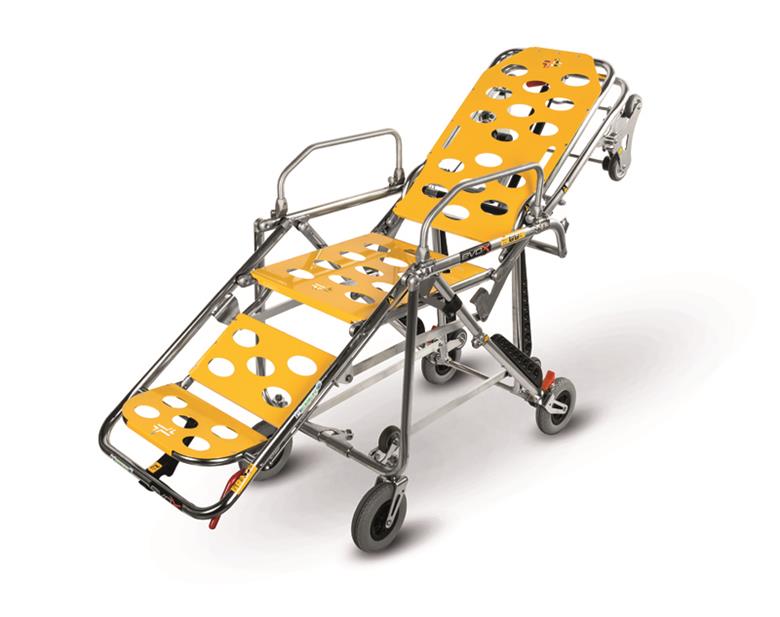

The self loading stretcher EVOX enables to settle the patient with the most comfortable position for its rescue and transport. Its conversion into chair allows access in all those confined spaces, such as elevators and hallways with tight corners, where a common stretcher cannot easily be manoeuvred . A gas pistons system allows to adjust EVOX in infinite positions until reaching the sitting position, relieving the operator from any sort of effort. Frame in stainless steel electro-polished, polyurethane wheels Ø 200mm, safety command to prevent accidental closure, mattress divided into four separate sections and an attractive design are the ultimate features of this device, always more required by the markets. An innovative system, consisting of four “balancing” loading wheels, allows to load Evox on different stretcher supports. Thanks to the appropriate lock in conjunction with the fixing system art. 962, the stretcher chair EVOX art . 7112I PROOF is able to withstand shocks up to 10g in all directions, as regulated by the UNI EN 1789 norm, as well as AIS125 certified. The ability to accommodate patient in the most congenial position, makes Evox the ideal solution also for all the emergency waiting rooms.




AIS125 Certified





Main features

Size Adults
Usage Transport
Lying surface Without Trendelenburg
Wheel type 2 Rotating Wheels + 2 Big Fixed Wheels
Height (cm) 80
Width (cm) 60
Weight (kg) 44,5
Loading capacity (kg) 220
Folded height (cm) 27
Max loading height (cm) 70
Length (cm) 193
Chair position min. length (cm) 123
Material Stainless steel

Accessories


608-A-MEB
Art. 608/A-MEB

2 pieces orange belt with metallic hook and MeBer band (L. 155 cm)


608-N-MEB
Art. 608/N-MEB

2 pieces black belt with metalic hook and MeBer band (L. 155 cm)


962
Art. 962

EN 1789 certified fixing system for stretcher/chair "EVOX"


12100-N
Art. 12100/N

Black electrowelded shaped cushion with MeBer logo for electowelded mattresses

Standard accessories


7009-A
Art. 7009/A

Orange electrowelded mattress for self loading stretcher EVOX


7009-N
Art. 7009/N

Black electrowelded mattress for self loading stretcher EVOX
