Fixed stretcher 1515 PROOF

Fixed stretcher with rigid bed

Art. 612/AN-2/MEB

Fixed stretcher 1515 PROOF

Fixed stretcher with rigid bed

Fixed stretcher built in anodized aluminium with painted rigid back rest and bed. Resistant and easy to clean. Trendelenburg and Fowler positions.Suitable for our ambulance trolleys (TITANUS) or as a hand-carried stretcher.


Available in the version with anti-vibration (no Trendelenburg and no Fowler)

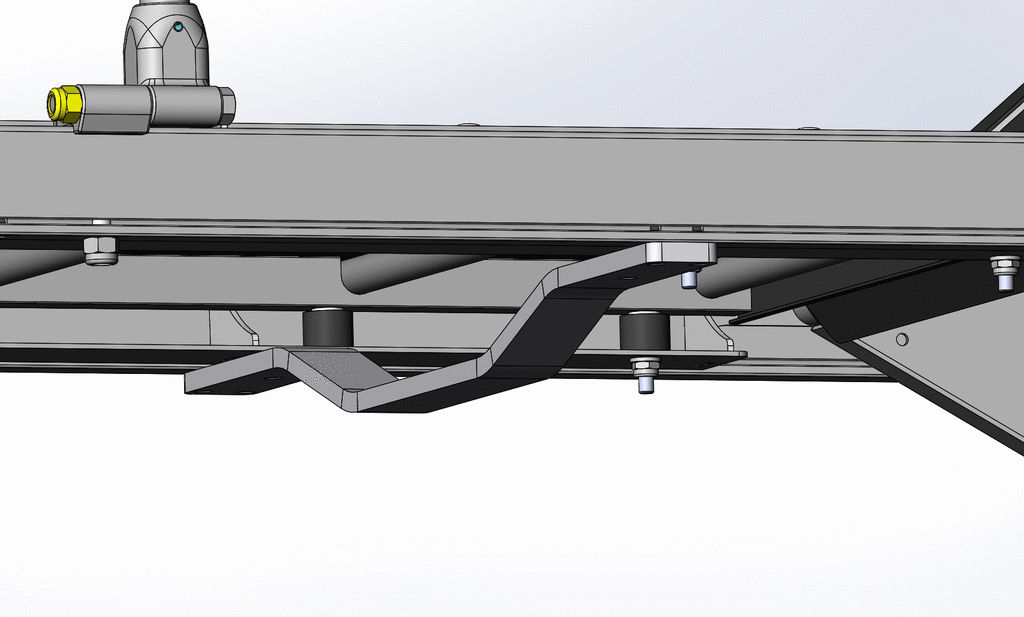

The vibration-absorbing element of the stretcher is made up of six natural rubber anti-vibration mounts which contribute to the reduction of any stress on the stretcher both when used on the trolley and especially during transport by ambulance.







  • 4 extractable and adjustable handles
  • 4 wheels diam. 100mm
  • adjustable backrest 75 degrees
  • Supplied with 2 belts (art. 608-A/MEB or 608-N/MEB), n. 3 belts (art. 605C), n.1 belt (art. 612/AN-2/MEB or 612/N-2/MEB) and 1 mattress (art. 7014)
  • Foldable side rails







Device certified according to the
European harmonized standards
UNI EN 1865 - UNI EN 1789

Main features

Size Adults
Usage Transport
Lying surface With Trendelenburg and Fowler
Height (cm) 16
Width (cm) 55
Length (cm) 196
Length with extended handles (cm) 233
Weight (kg) 20,8
Loading capacity (kg) 170
Wheel type 4 Small Fixed Wheels
10G Certification
Material Anodized aluminium
HDPE (High-density polyethylene)

See also


Fixed stretcher 1510 PROOF
1510 PROOF

Fixed stretcher with nylon cover


Titanus 7060-4RG PROOF
7060/4RG PROOF

Certified stainless steel variable height trolley with four rotating wheels


Titanus 7062-4RG PROOF
7062/4RG PROOF

Stainless steel variable height trolley with four rotating wheels high version

Accessories


936-A
936/A

Phleboclysis stand for stretchers Art. 1510 Proof and Art. 1515 Proof


604-MEB
604/MEB

Orange bag with 2 straps with plastic buckle and ME.BER. ribbon

Standard accessories


7014-A
7014/A

4 pcs. Skay fire-proof electrowelded mattress


608-A-MEB
608/A-MEB

2 pieces orange belt with metallic hook and MeBer band (L. 155 cm)


605-C
605/C

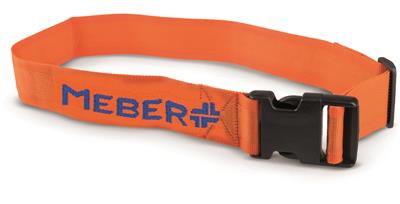

Orange belt in one piece with plastic buckle mm 50 and ME.BER. ribbon for proof mattresses
