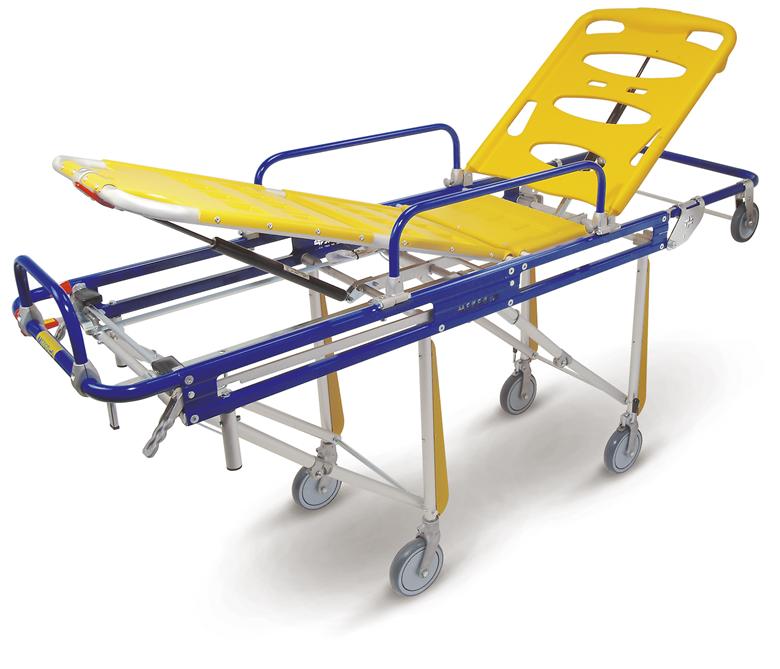

Winner 912/BLUE PROOF

Automatic loading stretcher blue with trendelenburg certified

Product code:
912/BLUE PROOF

Art. 912 PROOF is similar to model 912, the main difference is given by the mean of a rigid steel frame which allows, in coupling with the appropriate fixing system, to absorb those stresses caused by sudden accelerations or decelerations of the rescue veichle.



Device certified according to the European harmonized safety standards EN1865.



  • Back rest and lying part made with thermoplastic material reinforced to allow cardiac massage, easy to clean and to disinfect.
  • Adjustable back rest 0° - 90° moved by a gas piston that allows to fix the back rest safely in all positions.
  • Trendelenburg position operated by a gas piston from 0° to 20°.
  • Side protections completely overturnable.
  • Blocking device for the folded legs with a system that avoids the compression of the bar.
  • Safety lever for the legs positioned near the unlocking device allowing thus the release operation for the loading, keeping the hands on the stretcher.
  • Vertical legs protected by nylon wedges.
  • Automatic centring device mounted on rotating wheels. This system automatically blocks the back wheels in the central position during the loading of the stretcher on the ambulance without having to turn the wheels manually.
  • 4 wheels diam. 150, two fixed and with brakes and two rotating, one of which antistatic.
  • Complete with belts and mattress
Request for quote
912/BLUE PROOF

Winner 912/BLUE PROOF

Quantity


List price


0,00

+ VAT



Size Adults
Usage Transport
Lying surface With Trendelenburg
Wheel type 2 Rotating Wheels + 2 Small Fixed Wheels
10G Certification
Height (cm) 80
Width (cm) 56
Weight (Kg) 39
Loading capacity (Kg) 170
Folded height (cm) 21
Max loading height (cm) 65
Length (cm) 194
Material Painted aluminium
