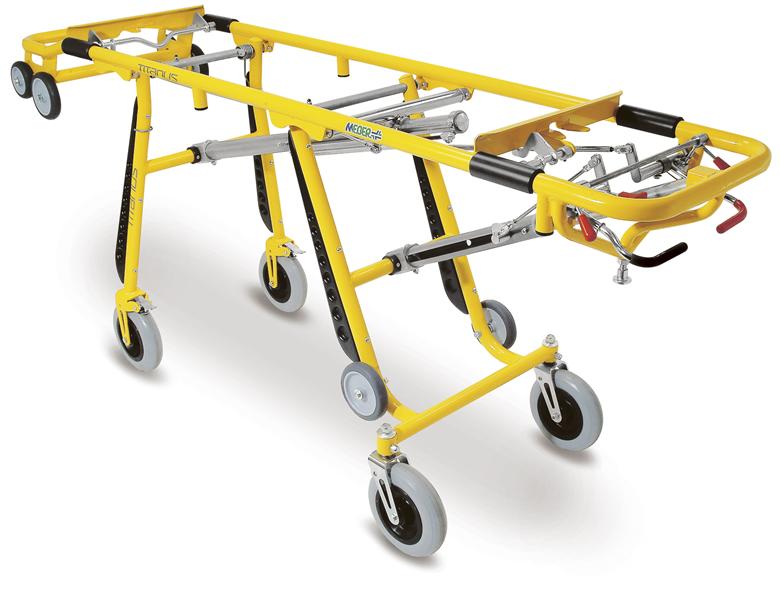

Titanus 7068/Y PROOF

Variable height trolley yellow high version certified

Product code:
7068/Y PROOF

Thanks to the latest technology and experience, Titanus is the ideal and most clever solution among those self loading stretchers and trolleys with
 adjustable height.
A brand new anchoring system of the stretchers to the Titanus trolley has been developped and improved compared to the former system, already tested and certified 10G EN1789.

The variable height, as well as the legs-folding mechanism for loading and unloading, is guaranteed by mean of 2 mechanical sliding pistons on each axle.

200 mm. wheels and the particular configuration of the legs, give to the Titanus trolley an unmatchable stability and an unique easy-handling and operating.

Practical and functional controls, ergonomics and Italian design, complete the qualities of the variable height trolley Titanus.

It is possible to load this trolley on ambulances with height up to 75 cm.

Device certified according to the European harmonized safety standards EN1865.
Request for quote
7068/Y PROOF

Titanus 7068/Y PROOF

Quantity

List price


0,00

+ VAT


Size Adults
Usage Transport
10G Certification
Multilevel
Lying surface Without Trendelenburg
Wheel type 2 Rotating Wheels + 2 Big Fixed Wheels
Min height (cm) 25
Max height (cm) 89
Width (cm) 44
Weight (Kg) 35
Loading capacity (Kg) 220
Intermediate height (cm) 61
Max loading height (cm) 75
Rear axle width (cm) 56
Length (cm) 197
Material Painted iron
