Mercury 7072 PROOF

Stainless steel variable height stretcher high version certified

Product code:
7072 PROOF

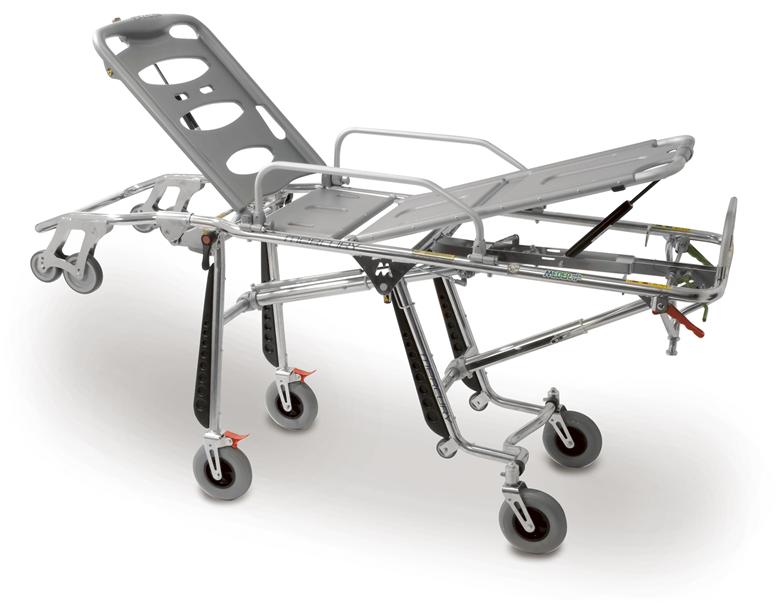

The MERCURY roll-in stretcher has a height adjustment system by mean of 2 mechanical sliding pistons on each axle. This system allows the height adjustment of the patient support surface, with the aim of improving ergonomics for rescue operators while they do their work (medical assistance, handling and transport of persons). The MERCURY roll-in stretcher can have different configurations for the purpose of ensuring maximum patient comfort. The stretcher is fixed inside the rescue vehicle by mean of a EN 1789 certified device, Art. 955PROOF, that guarantees the stretcher is tightly restrained in all directions.
It is possible to load the stretcher on ambulances with height up to 75 cm.

  • Ergonomic controls (for rescue vehicle loading operations and for configuration adjustments of the patient support surface)
  • Adjustable backrest with lockable gas spring for inclinations from 0° to 90°
  • Fully folding 600 mm sides.
  • HDPE buffers for loading onto the rescue vehicle (on both front and back legs)
  • 2 fixed front wheels, Ø 200 mm with brakes
  • 2 rear castors, 360° Ø 200 mm
  • 4 loading wheels of which 2 are Ø 100 mm and 2 are Ø125 mm (easy loading system)
  • Complete with mattress art. 7014, n. 2 belts art. 608 and n. 1 belt art. 612

Device certified according to the European harmonized safety standards EN1865-EN1789

Request for quote
7072 PROOF

Mercury 7072 PROOF

Quantity


List price


0,00

+ VAT



Size Adults
Usage Transport
10G Certification
Multilevel
Lying surface With Trendelenburg
Wheel type 2 Rotating Wheels + 2 Big Fixed Wheels
Max height (cm) 89
Width (cm) 56
Weight (Kg) 43
Loading capacity (Kg) 220
Folded height (cm) 28
Intermediate height (cm) 64
Max loading height (cm) 75
Length (cm) 197
Material Stainless steel
