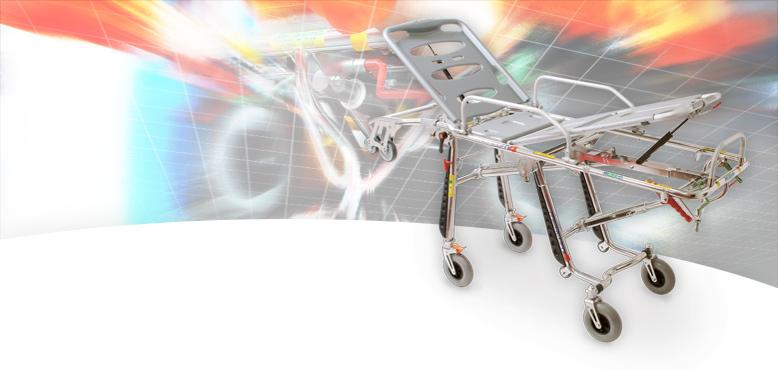

Mercury 7070/4RG PROOF

Stainless steel variable height stretcher certified with 4 rotating wheels

Product code:
7070/4RG PROOF

The MERCURY roll-in stretcher has a height adjustment system by mean of 2 mechanical sliding pistons on each axle. This system allows the height adjustment of the patient support surface, with the aim of improving ergonomics for rescue operators while they do their work (medical assistance, handling and transport of persons). The MERCURY roll-in stretcher can have different configurations for the purpose of ensuring maximum patient comfort. The stretcher is fixed inside the rescue vehicle by mean of a EN 1789 certified device, Art. 955PROOF, that guarantees the stretcher is tightly restrained in all directions.

Mercury is now also available with the four rotating wheels optional for an unbeatable manouevrability.This device is the ideal for the use of the stretcher in tight and narrow places.
Operating an easy mechanic command, the two frontal wheels can be unblocked or taken back to the original fixed forward direction.

  • Ergonomic controls (for rescue vehicle loading operations and for configuration adjustments of the patient support surface)
  • Adjustable backrest with lockable gas spring for inclinations from 0° to 90°
  • Fully folding 600 mm sides
  • HDPE buffers for loading onto the rescue vehicle (on both front and back legs)
  • 2 fixed/rotatin front wheels, Ø 200 mm with brakes
  • 2 rear castors, 360° Ø 200 mm
  • 4 loading wheels of which 2 are Ø 100 mm and 2 are Ø125 mm (easy loading system)
          • Complete with mattress art. 7014, n. 2 belts art. 608 and n. 1 belt art. 612

Stretcher Mercury with 4 rotating wheels is also available in following colors: black (art. 7076BLACK/4RG PROOF) and yellow (art. 7076Y/4RG PROOF).

Device certified according to the European harmonized safety standards EN1865-EN1789

Request for quote
7070/4RG PROOF

Mercury 7070/4RG PROOF

Quantity


List price


0,00

+ VAT



Size Adults
Usage Transport
10G Certification
Multilevel
Lying surface With Trendelenburg
Wheel type 4 Big Rotating Wheels
Max height (cm) 85
Width (cm) 56
Weight (Kg) 44
Loading capacity (Kg) 220
Folded height (cm) 28
Intermediate height (cm) 62
Max loading height (cm) 69
Length (cm) 197
Material Stainless steel

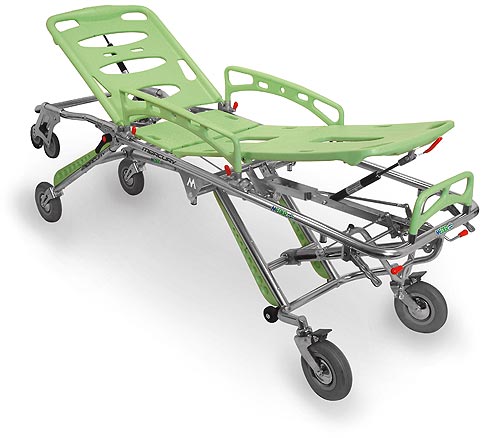

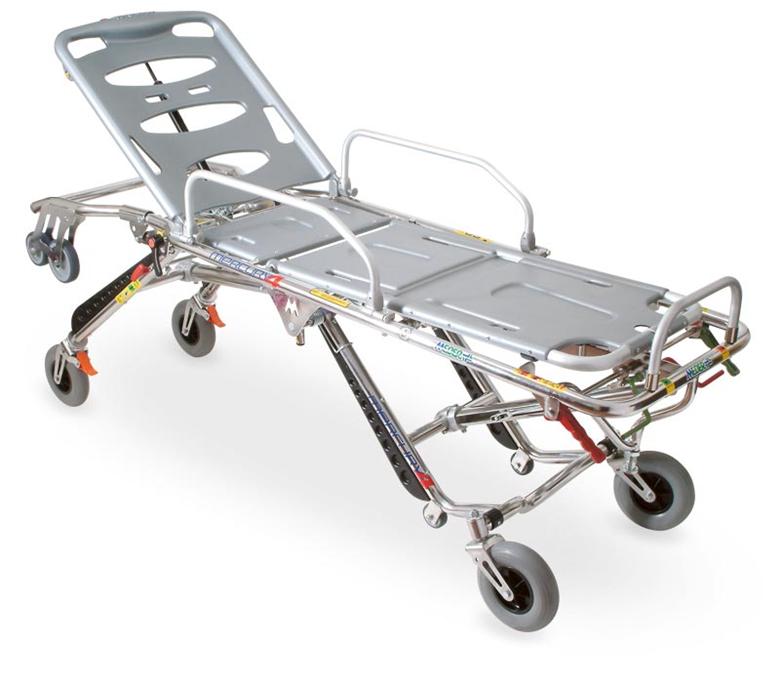

Posizione intermedia
Posizione intermedia
Posizione coricata
Posizione coricata
Ruote girevoli anteriori
Ruote girevoli anteriori

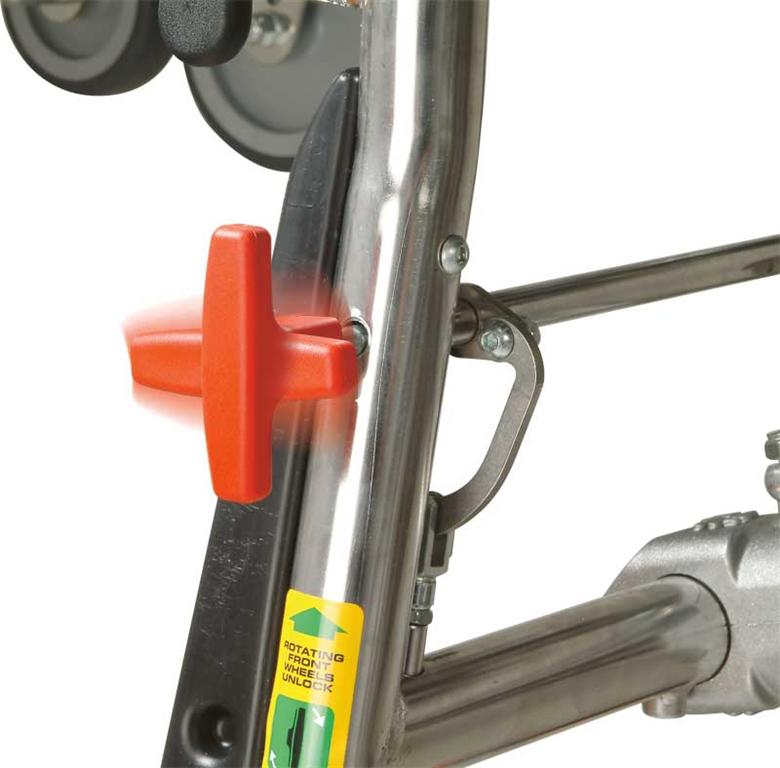

Leva di sblocco ruote girevoli anteriori
Leva di sblocco ruote girevoli anteriori
