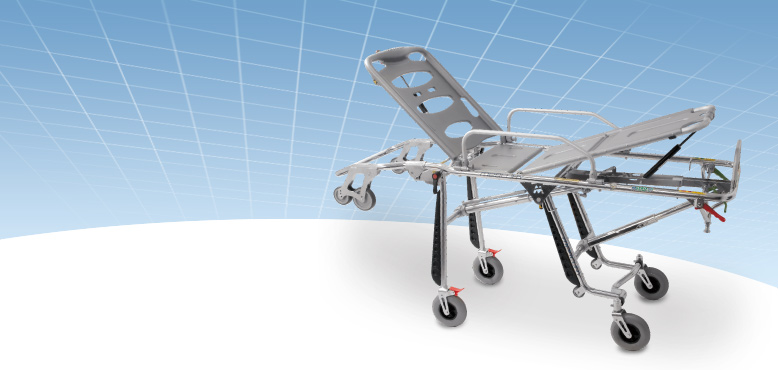

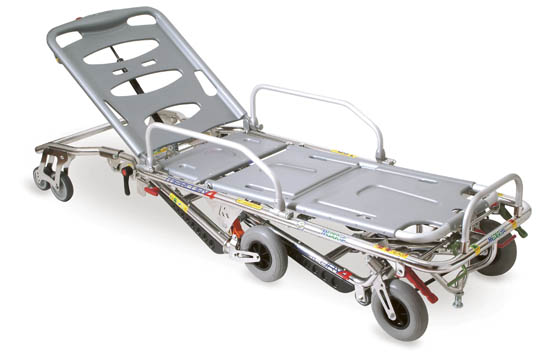

Mercury 7070 PROOF

Stainless steel variable height stretcher certified

Product code:
7070 PROOF

The MERCURY roll-in stretcher has a height adjustment system by mean of 2 mechanical sliding pistons on each axle. This system allows the height adjustment of the patient support surface, with the aim of improving ergonomics for rescue operators while they do their work (medical assistance, handling and transport of persons). The MERCURY roll-in stretcher can have different configurations for the purpose of ensuring maximum patient comfort. The stretcher is fixed inside the rescue vehicle by mean of a EN 1789 certified device, Art. 955PROOF, that guarantees the stretcher is tightly restrained in all directions.

  • Ergonomic controls (for rescue vehicle loading operations and for configuration adjustments of the patient support surface)
  • Adjustable backrest with lockable gas spring for inclinations from 0° to 90°
  • Fully folding 600 mm sides.
  • HDPE buffers for loading onto the rescue vehicle (on both front and back legs)
  • 2 fixed front wheels, Ø 200 mm with brakes
  • 2 rear castors, 360° Ø 200 mm
  • 4 loading wheels of which 2 are Ø 100 mm and 2 are Ø125 mm (easy loading system)
  • Complete with mattress art. 7014, n. 2 belts art. 608 and n. 1 belt art. 612





Device certified according to the European harmonized safety standards  EN1865-EN1789

Request for quote
7070 PROOF

Mercury 7070 PROOF

Quantity


List price


0,00

+ VAT



Size Adults
Usage Transport
10G Certification
Wheel type 2 Rotating Wheels + 2 Big Fixed Wheels
Multilevel
Lying surface With Trendelenburg
Max height (cm) 85
Width (cm) 56
Weight (Kg) 42
Loading capacity (Kg) 220
Folded height (cm) 28
Intermediate height (cm) 62
Max loading height (cm) 69
Length (cm) 197
Material Stainless steel
Posizione intermedia
Posizione intermedia
Posizione coricata
Posizione coricata
