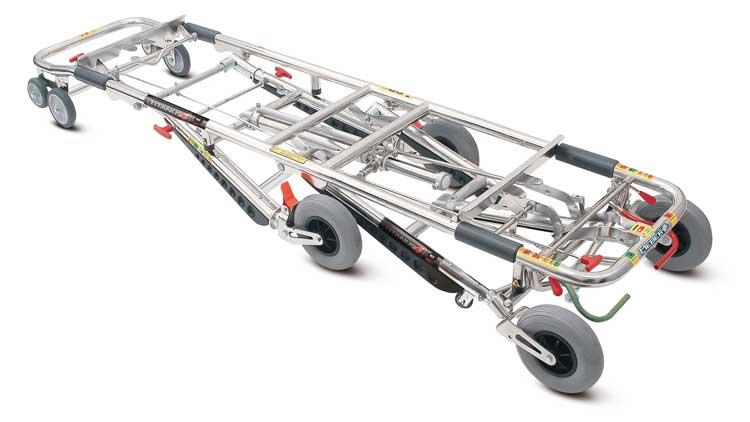

Titanus 7062/4RG PROOF

Stainless steel variable height trolley with four rotating wheels high version

Titanus 7062/4RG PROOF

Stainless steel variable height trolley with four rotating wheels high version

Description

Titanus is the ideal solution among self loading stretchers and trolleys with adjustable height. The anchoring system of the stretchers to the Titanus trolley is tested and certified UNI EN 1789. The variable height, as well as the legs-folding mechanism for loading and unloading, is guaranteed by mean of 2 mechanical sliding pistons on each axle. 200 mm wheels and the particular configuration of the legs, give to the Titanus trolley stability, manouvrability and ergonomy.
This version has four rotating wheels and it is possible to load the trolley on ambulances with height up to 75 cm.


Device certified according to the European harmonized safety standards UNI EN1865- UNI EN 1789.

Size Adults
Usage Transport
10G Certification
Multilevel
Lying surface Without Trendelenburg
Wheel type 4 Big Rotating Wheels
Type Self loading trolley
Min height (cm) 25
rear part height (cm) 89
Width (cm) 44
Weight (kg) 37
Loading capacity (kg) 220
Intermediate height (cm) 61
Max loading height (cm) 72
Min loading height (cm) 68
Rear axle width (cm) 56
Length (cm) 197
Folded width (cm) 200
Material Stainless steel
EN 1789 - EN 1865 Titanus certification - I
Download

Click the button to download the file.

EN 1789 - EN 1865 Titanus certification - II
Download

Click the button to download the file.
