Titanus 7060/4RG PROOF

Certified stainless steel variable height trolley with four rotating wheels

Titanus 7060/4RG PROOF

Certified stainless steel variable height trolley with four rotating wheels

Description

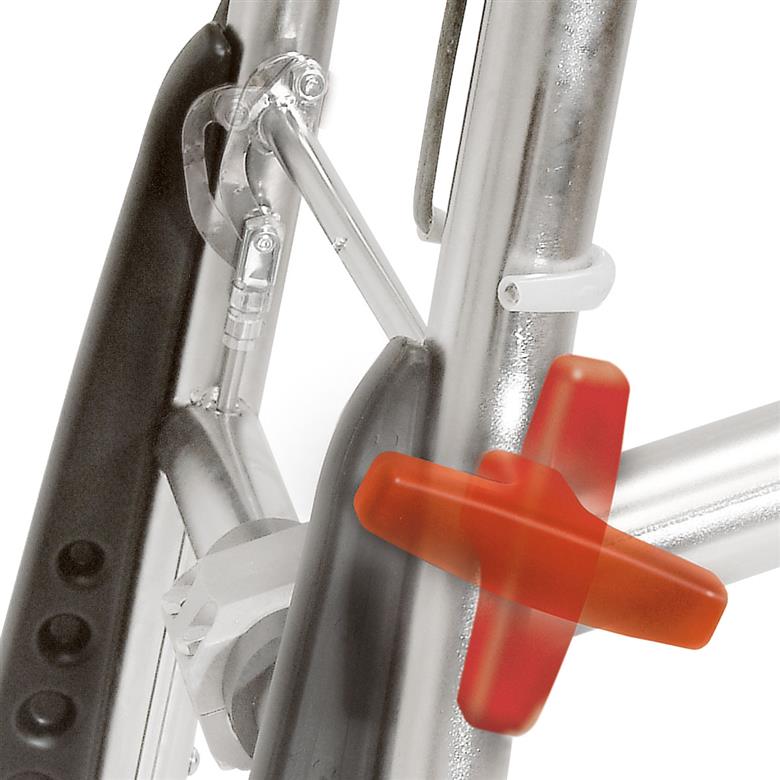

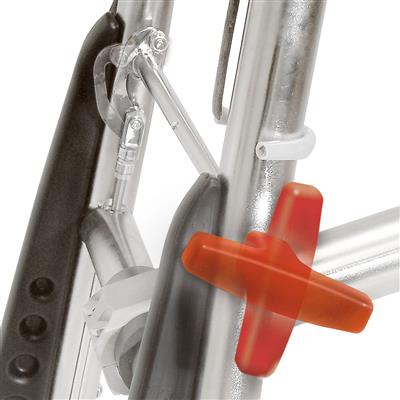

Titanus is the ideal solution among self loading stretchers and trolleys with adjustable height. The anchoring system of the stretchers to the Titanus trolley is tested and certified UNI EN 1789. The variable height, as well as the legs-folding mechanism for loading and unloading, is guaranteed by mean of 2 mechanical sliding pistons on each axle. 200 mm wheels and the particular configuration of the legs, give to the Titanus trolley stability, manouvrability and ergonomy.
This version is available with four rotating wheels.



Device certified according to the European harmonized safety standards UNI EN1865- UNI EN1789.

Size Adults
Usage Transport
10G Certification
Multilevel
Lying surface Without Trendelenburg

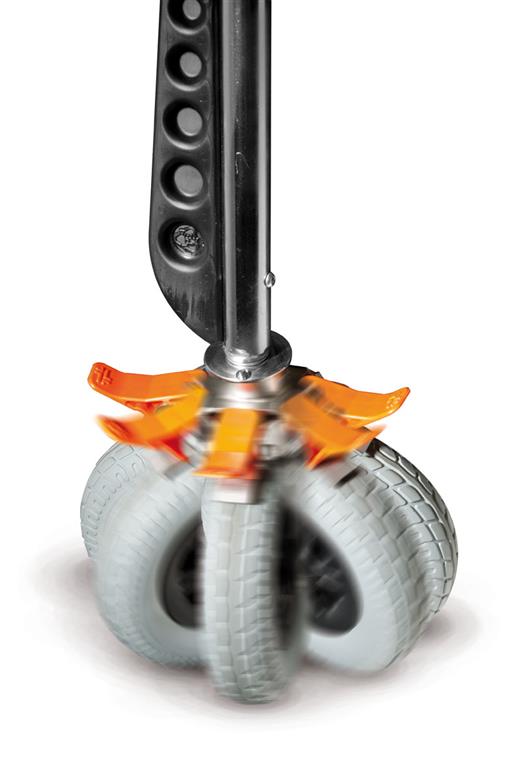

Wheel type 4 Big Rotating Wheels
Type Self loading trolley
Intermediate height (cm) 61
rear part height (cm) 84
Folded height (cm) 25
Width (cm) 44
Rear axle width (cm) 56
Weight (kg) 36,5
Loading capacity (kg) 220
Max loading height (cm) 64
Min loading height (cm) 60
Length (cm) 197
Material Stainless steel
EN 1789 - EN 1865 Titanus certification - I
Download

Click the button to download the file.

EN 1789 - EN 1865 Titanus certification - II
Download

Click the button to download the file.
