Frog Lite 7260 PROOF

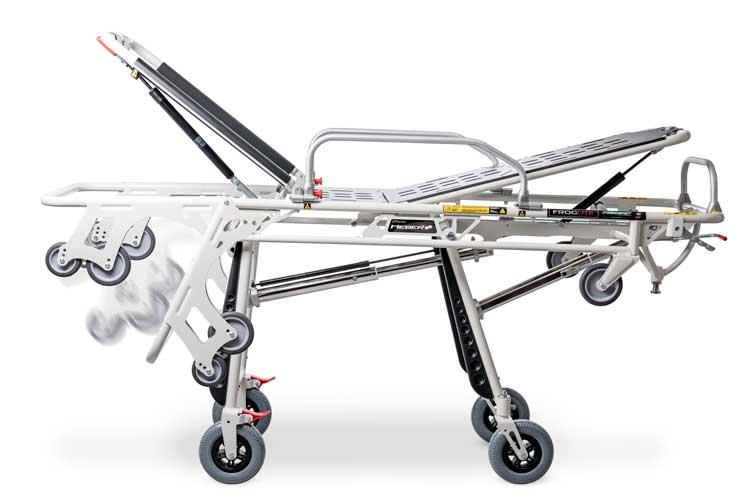

“FROG LITE” self loading aluminium stretcher with trendelenburg certified

Frog Lite 7260 PROOF

“FROG LITE” self loading aluminium stretcher with trendelenburg certified

Description

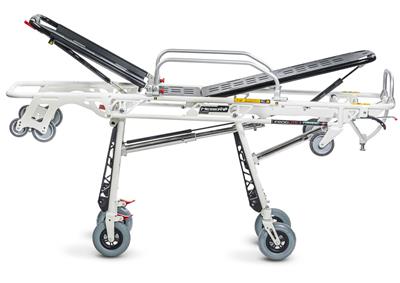

Made of painted aluminium alloy, extremely light, it is also provided with trendelenburg. The 4 Ø 200 mm polyurethane wheels (2 fixed with brake and 2 rotating with self-centring system) grant high comfort on uneven surfaces. Easy to clean and desinfect.

• Rigid platform made of painted aluminium alloy
• Reclining backrest 0°-80°, operated by a gas piston, lockable in any position
• Folding sides
• Vertical legs protected by plastic buffets
• Rotating wheels are self centring
• Collapsable frontal trolley

In coupling with the proper fixation Art.

Description

Made of painted aluminium alloy, extremely light, it is also provided with trendelenburg. The 4 Ø 200 mm polyurethane wheels (2 fixed with brake and 2 rotating with self-centring system) grant high comfort on uneven surfaces. Easy to clean and desinfect.

• Rigid platform made of painted aluminium alloy
• Reclining backrest 0°-80°, operated by a gas piston, lockable in any position
• Folding sides
• Vertical legs protected by plastic buffets
• Rotating wheels are self centring
• Collapsable frontal trolley

In coupling with the proper fixation Art.

955 Proof, it is 10g resistant.
Supplied complete with mattress (Art. 7013) and belts (nr. 2 Art. 608-A/MEB o 608-N/MEB and nr. 1 Art. 612/AN-2/MEB or Art. 612/N-2/MEB).





Device certified according to the European harmonized standards UNI EN 1865 - UNI EN 1789

10G Certification
Height (cm) 83

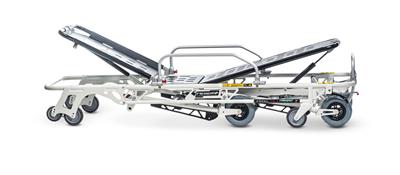

Max loading height (cm) 66
Min loading height (cm) 60
Folded height (cm) 26
Width (cm) 56
Length (cm) 196
Weight (kg) 35,1
Loading capacity (kg) 220
Filter feature Trendelenburg
Material Painted aluminium
HDPE (High-density polyethylene)
EN 1789 - EN 1865 Frog Lite Certification
