8442

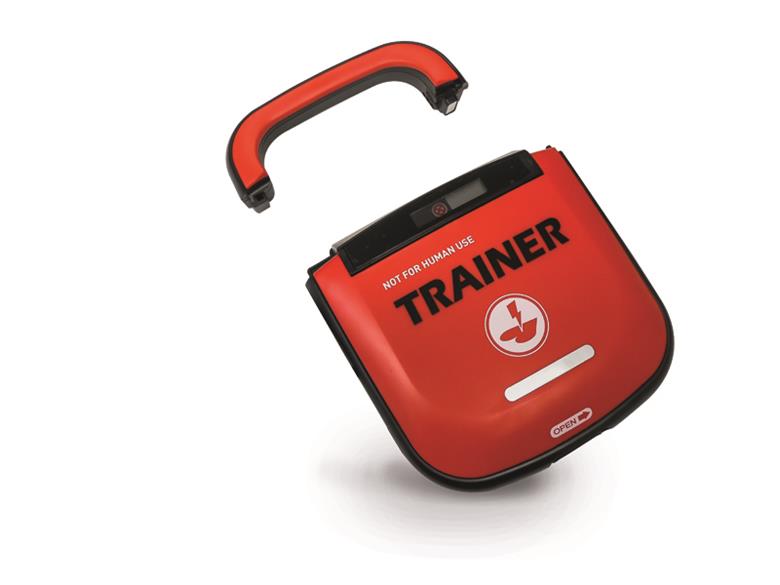

Semiautomatic defibrillator mod. Technoheart Plus AED Trainer

8442

Semiautomatic defibrillator mod. Technoheart Plus AED Trainer

Description

The trainer system for automatic external defibrillator is a simulator that allows the teaching of basic first aid techniques and the correct defibrillation procedures to the first aid operators.

Description

The trainer system for automatic external defibrillator is a simulator that allows the teaching of basic first aid techniques and the correct defibrillation procedures to the first aid operators.

DAE Trainer:
  • Simulates the provision of electric shocks and allows a safety use during the training, because it doesn’t deliver high voltages,
  • It contains 10 preconfigured scenarios of training that simulate realistic episodes of sudden cardiac arrest,
  • It can be controlled with a infrared remote control that allows the instructor to modify the scenaries during the training so you can verify the students’ reaction.
  • Thanks to the remoter control you can also simulate the shockable rhythm and the  non-shockable rhythm.
The PC software allows the configuration of custom scenarios.
To connect the device to the PC serial port, you need a standard serial cable D-sub 1: 1 9-poles.






Technical features

  • Power:
DC 10,8V / 2200mAh
Rechargeable 3-cell lithium battery
DV 15V / adaptor DC 15V, 1,5A
  • Static power: < 5uA
  • Maximum power: < 500mA
  • Dimensions: 314mm x 259mm x 109mm
  • Weight: 1,9kg





Environmental conditions:

OPERATIONAL
  • Operation: from 0 to 43 ° C (from 32 to 109.4 ° F)
  • Relative humidity: from 5 to 95% (non-condensing)
  • Altitude: from 0 to 4,475 m
STORAGE

  • Storage: from -20 to 60 ° C (from -4 to 140 ° F)
  • Relative humidity: from 5 to 95% (non-condensing)
  • Altitude: from 0 to 12,192 m
REMOTE CONTROL
  • Remote coontrol: DC 3V / Button batteries
  • Static power: < 5uA
  • Maximum power: < 10mA





List of components

N° 1 Remote control
N° 1 Traning pads for adults (used 100 times)
N° 1 Operator’s manual

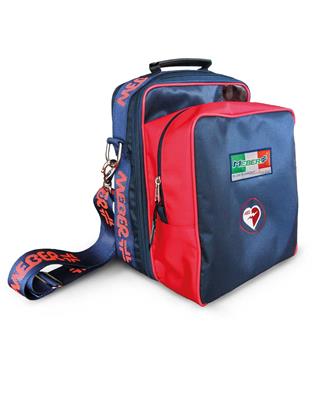

N° 1 Carrying case (Nylon)
N° 1 DC adapter
N° 1 CD Software DAE Trainer (Optional)

Cardio
Height (cm) 25,9
Width (cm) 31,4
Depth (cm.) 10,9
Weight (kg) 1,9
Normativa Defibrillatori
Download
